QSAR in Cheminformatics: An In-Depth Guide for Beginners

1. Introduction

Quantitative structure-activity relationship (QSAR) models are mathematical models that relate the biological activity or property of a chemical compound to its structural properties.

The underlying principle is that variations in structural properties cause different biological activities.

In QSAR modeling, the predictor variables consist of physicochemical properties or theoretical molecular descriptors of chemicals, while the response variable could be a biological activity or property of the chemicals.

QSAR models first summarize the relationship between chemical structures and biological activity in a dataset of chemicals and then predict the activities of new chemicals.

QSAR modeling is essential for drug discovery and environmental chemistry for several reasons:

• Prioritizes promising drugs: QSAR modeling helps prioritize a large number of compounds in terms of their desired biological activities as an in silico methodology, significantly reducing the number of drug candidates to be tested with in vivo experiments.
• Reduces animal testing: QSAR models are recognized as alternative methods to testing with living organisms and are being increasingly utilized in chemical management activities nationally and internationally to reduce animal testing.
• Predicts properties: QSAR models can be used to predict the physicochemical, biological and environmental properties of compounds from the knowledge of their chemical structure.
• Provides quantitative relationships: QSAR provides a mathematical model that quantitatively relates a numerical measure of chemical structure to a biological activity or property.
• Guides chemical modifications: Understanding the relationship between structure and activity can guide the design of new chemicals with improved properties.

2. Fundamentals of QSAR

Basic concepts of QSAR

1. Molecular representations

QSAR models represent molecules as numerical vectors, where each element in the vector corresponds to a molecular descriptor that quantifies a specific structural, physicochemical or electronic property of the molecule (3). Common molecular descriptors include:

1. Constitutional descriptors (e.g. molecular weight, number of atoms, etc.)
2. Topological descriptors (e.g. connectivity indices, graph invariants, etc.)
3. Electronic descriptors (e.g. partial charges, dipole moments, etc.)
4. Geometric descriptors (e.g. surface area, volume, etc.)

2. Structure-Activity Relationship

QSAR models aim to find a mathematical relationship between the molecular descriptors and the biological activity or property of interest, such as:

Biological Activity = 𝑓 (Molecular Descriptors) + 𝜖

where ϵ represents the error or residual not explained by the model.

3. Model Development

The general workflow for developing a QSAR model involves:

1. Curating a dataset of molecules with known biological activities.
2. Calculating molecular descriptors for the dataset.
3. Selecting the most relevant descriptors using variable selection techniques.
4. Building a predictive model relating the descriptors to the activity using regression or classification methods.
5. Validating the model's predictive performance using internal and external test sets.

4. Model Interpretation

QSAR models can provide insights into the structural features and physicochemical properties that influence biological activity. This can guide the design of new, more potent molecules. Common techniques for model interpretation include:

1. Identifying the most important descriptors in the model.
2. Visualizing the relationships between descriptors and activity using scatter plots.
3. Analyzing the coefficients and statistical significance of the model parameters.

Want to learn QSAR modeling through coding? Explore the Cheminformatics: Tools and Applications course now!

Types of QSAR Models

Linear and non-linear QSAR models are two main approaches used to establish quantitative relationships between molecular structure and biological activity (4).

• Linear QSAR models assume a linear relationship between the molecular descriptors and the biological activity:

Activity = ∑iwi x Descriptori + b + ϵ

where wi are the model coefficients, b is the intercept, and ∑ is the error term.

Examples of linear QSAR models include multiple linear regression (MLR) and partial least squares (PLS).

• Non-linear QSAR models can capture more complex relationships by using non-linear functions, such as artificial neural networks (ANNs) or support vector machines (SVMs).

The general form of a non-linear QSAR model is:

Activity = 𝑓 (Descriptor1, Descriptor2, ..., Descriptor𝑛) + 𝜖

where 𝑓 is a non-linear function learned from the data.

The choice between linear and non-linear QSAR models depends on the complexity of the structure-activity relationship and the size and quality of the available data.

Non-linear models can capture more complex patterns but require larger datasets for training and are more prone to overfitting.

In a comparative study, both linear PLS and non-linear ANN QSAR models were developed for predicting the antioxidant capacity (ORAC) of phenolic compounds.

The non-linear ANN model showed stronger predictive performance, highlighting the importance of non-linear relationships between molecular descriptors and biological activity in this case.

QSAR Workflow

A typical QSAR modeling workflow contains the following key steps:

1. Compile a dataset of chemical structures and their associated biological activities or properties. Ensure the dataset is of high quality and representative of the chemical space of interest.
2. Calculate a diverse set of molecular descriptors that capture the structural, physicochemical, and electronic properties of the compounds.
3. Select the most relevant descriptors using feature selection techniques to avoid overfitting and improve model interpretability.
4. Split the dataset into training and test sets, often using methods like the Kennard-Stone algorithm, to enable proper model validation.
5. Build QSAR models using regression or classification algorithms such as multiple linear regression (MLR), partial least squares (PLS), or random forest.
6. Validate the models using internal (e.g. cross-validation) and external test sets to assess their predictive performance and robustness.
7. Evaluate the applicability domain of the models to determine the chemical space where the models can make reliable predictions.

3. Chemical Descriptors for QSAR

Chemical descriptors are numerical representations of the structural, physicochemical, and electronic properties of molecules.

They play a fundamental role in QSAR modeling by providing a quantitative way to encode the chemical information of molecules (5).

QSAR models aim to establish a mathematical relationship between the chemical descriptors and the biological activity or property of interest.

The descriptors serve as the independent variables in the QSAR equation, while the biological activity is the dependent variable (6).

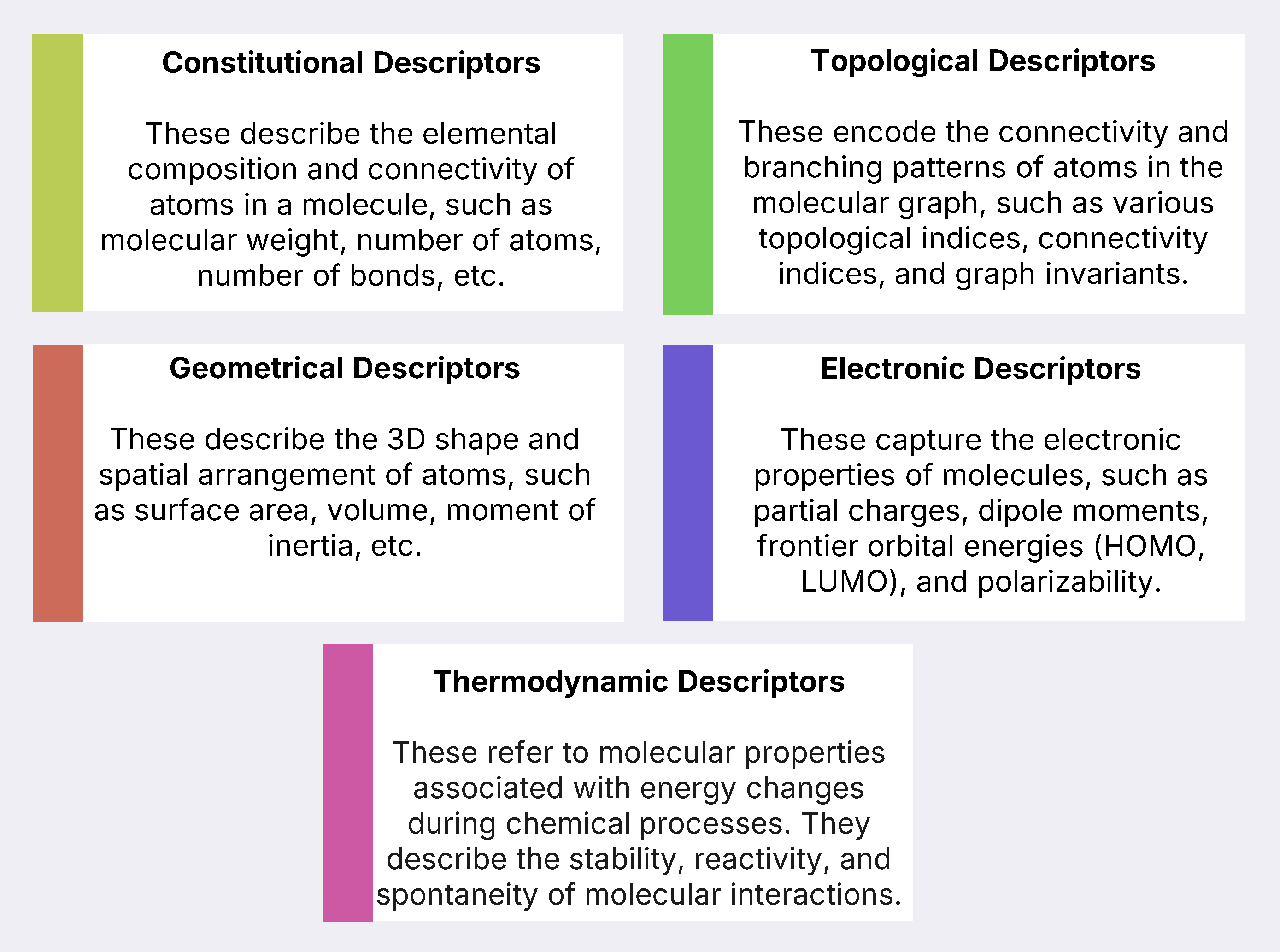

Types of descriptors for QSAR

• Constitutional Descriptors: These describe the elemental composition and connectivity of atoms in a molecule, such as molecular weight, number of atoms, number of bonds, etc.

• Topological Descriptors: These encode the connectivity and branching patterns of atoms in the molecular graph, such as various topological indices, connectivity indices, and graph invariants.

• Geometrical Descriptors: These describe the 3D shape and spatial arrangement of atoms, such as surface area, volume, moment of inertia, etc.

• Electronic Descriptors: These capture the electronic properties of molecules, such as partial charges, dipole moments, frontier orbital energies (HOMO, LUMO), and polarizability.

Descriptor Calculation and Software Tools for QSAR

Numerous software packages are available to calculate a wide variety of molecular descriptors, including:

• PaDEL-Descriptor
• Dragon
• RDKit
• Mordred
• ChemAxon
• OpenBabel

These tools can generate hundreds to thousands of descriptors for a given set of molecules. Careful selection of the most relevant descriptors is crucial to building robust and interpretable QSAR models.

Related Reading: A Curated List of Cheminformatics Software and Libraries

4. Data Preparation for QSAR

The quality and curation of the dataset are crucial for developing robust and reliable QSAR models.

The key steps in data preparation include:

1. Dataset Collection

• Compile a dataset of chemical structures and their associated biological activities or properties from reliable sources, such as literature, patents, and public/private databases.
• Ensure the dataset covers a diverse chemical space relevant to the problem at hand.
• Carefully document the data sources, experimental conditions, and any other metadata.

2. Data Cleaning and Preprocessing

• Remove any duplicate, ambiguous, or erroneous data entries.
• Standardize the chemical structures (e.g., remove salts, normalize tautomers, handle stereochemistry).
• Convert all biological activities to a common unit and scale.
• Handle any outliers or extreme values in the data.

3. Handling Missing Values

• Identify the extent and patterns of missing data in the dataset.
• Employ appropriate techniques to handle missing values, such as:
  • Removing compounds with missing data (if the fraction of missing data is low).
  • Imputing missing values using methods like k-nearest neighbors, matrix factorization, or QSAR-based prediction.

4. Data Normalization and Scaling

• Normalize the biological activity data to a common scale (e.g., log-transform, standardize to z-scores).
• Scale the molecular descriptors to have zero mean and unit variance to ensure equal contribution during model training.
• Avoid normalization techniques that can introduce bias, such as min-max scaling.

The cleaned and preprocessed dataset should be split into training, validation, and external test sets to enable proper model development and evaluation.

The test set should be kept aside and used only for the final model assessment, not for any model tuning or selection.

Related reading: Cheminformatics Data Pipelining Tutorial Part 1: The Foundation

5. QSAR Model Building

The model-building stage involves selecting appropriate algorithms, performing feature selection, and validating the models using training and test sets.

1. Selection of Algorithms

Some commonly used QSAR modeling algorithms include:

• Multiple Linear Regression (MLR): A simple and interpretable linear model that relates the molecular descriptors to the biological activity.
• Partial Least Squares (PLS): A regression technique that handles multicollinearity in the descriptor data and can deal with a large number of descriptors.
• Support Vector Machines (SVM): A non-linear modeling approach that can capture complex structure-activity relationships and is robust to overfitting.
• Neural Networks (NN): Flexible non-linear models that can learn intricate patterns in the data, but may require larger datasets and are less interpretable.

The choice of algorithm depends on the complexity of the structure-activity relationship, the size and quality of the dataset, and the desired level of model interpretability.

2. Feature Selection Methods

Feature selection is crucial to identify the most relevant molecular descriptors and improve the model's predictive performance and interpretability.

Common feature selection methods include:

• Filter Methods: Rank descriptors based on their individual correlation or statistical significance (e.g., correlation coefficient, t-test, ANOVA).
• Wrapper Methods: Use the modeling algorithm itself to evaluate different subsets of descriptors and select the most informative ones (e.g., genetic algorithms, simulated annealing).
• Embedded Methods: Perform feature selection as part of the model training process (e.g., LASSO regression, random forest feature importance).

3. Training and Validation Sets

The dataset is typically split into training, validation, and external test sets:

• The training set is used to build the QSAR models.
• The validation set is used to tune model hyperparameters and select the final model.
• The external test set is used to assess the model's predictive performance on unseen data.

4. Cross-Validation Techniques

Cross-validation is used to estimate the model's predictive performance during the training process. Common techniques include:

k-fold cross-validation: Divide the training set into k subsets, train on k-1 subsets and test on the remaining subset, repeating this process k times.

Leave-one-out cross-validation: Use a single compound as the test set and the remaining compounds as the training set, repeating this for all compounds.

Cross-validation helps prevent overfitting and provides a more reliable estimate of the model's generalization ability.

6. QSAR Model Validation

Model validation is a critical step in the QSAR modeling workflow to assess the predictive performance, robustness, and reliability of the developed models. It involves both internal and external validation techniques.

1. Internal Validation

Internal validation methods use the training data to estimate the model's predictive performance. Common techniques include:

Cross-Validation (CV):

• Divide the training set into k subsets (folds)
• Train the model on k-1 folds and test on the remaining fold
• Repeat this process k times, using each fold as the test set once
• Calculate the average performance across all folds

Leave-One-Out (LOO) CV:

• A special case of CV where k equals the number of compounds in the training set
• Train the model on all but one compound and test on the left-out compound -Repeat this process for each compound in the training set

Internal validation provides an estimate of the model's predictive performance on new data but may be optimistic due to the use of the same data for training and validation.

2. External Validation External validation uses an independent test set that was not used during model development to assess the model's predictive performance on unseen data. This provides a more realistic estimate of the model's performance in real-world applications. Techniques include:

Test Set Validation:

• Split the dataset into training and test sets
• Develop the model using the training set
• Evaluate the model's performance on the test set

y-Randomization:

• Randomly shuffle the activity values (y-values) in the training set
• Build a model using the shuffled data
• Evaluate the model's performance on the test set
• Repeat this process multiple times
• If the model performs well on the randomized data, it may be overfitting

3. Statistical Metrics

Various statistical metrics are used to quantify the model's predictive performance:

• R²: The coefficient of determination measures the goodness-of-fit of the model
• Q²: The predictive squared correlation coefficient measures the model's predictive ability
• RMSE: Root mean squared error measures the average magnitude of the prediction errors
• MAE: Mean absolute error measures the average absolute difference between predicted and actual values

For classification tasks, additional metrics include:

• Accuracy: The proportion of true results (both true positives and true negatives) among the total number of cases examined.
• Precision: The proportion of true positive results in all positive predictions.
• Recall (Sensitivity): The proportion of true positive results in all actual positive cases.
• Specificity: The proportion of true negative results in all actual negative cases.
• F1 Score: The harmonic mean of precision and recall provides a balance between the two.
• MCC (Matthews Correlation Coefficient): A balanced measure that takes into account true and false positives and negatives, suitable for imbalanced datasets.

The choice of metrics depends on the type of activity (continuous or categorical) and the specific requirements of the application.

Rigorous validation using both internal and external techniques is essential to ensure the developed QSAR models are reliable, and robust and can be confidently applied to virtual screening and lead optimization tasks.

7. Interpretation of QSAR Models

Interpreting QSAR models is crucial to understanding the complex relationships between molecular structure and biological activity and to guide the design of new, more potent compounds.

Some key techniques for QSAR model interpretation include:

1. Understanding Model Coefficients

For linear QSAR models, such as multiple linear regression (MLR) or partial least squares (PLS), the model coefficients can provide insights into the influence of individual molecular descriptors on the predicted activity:

• The magnitude of a coefficient indicates the relative importance of the corresponding descriptor.
• The sign of the coefficient (positive or negative) suggests whether the descriptor is positively or negatively correlated with the activity.
• Statistical significance tests can identify the descriptors that have a statistically significant impact on the model.

2. Analyzing Descriptor Contributions

For both linear and non-linear QSAR models, the contributions of individual descriptors can be analyzed:

• Feature importance methods, such as permutation importance or Shapley values, can quantify the relative importance of each descriptor.
• Partial dependence plots can visualize the relationship between a descriptor and the predicted activity while holding other descriptors constant.
• Sensitivity analysis can assess how changes in a descriptor value affect the model output.

3. Visualization Techniques

Visualizing the QSAR models and the underlying structure-activity relationships can provide valuable insights:

• Scatter plots of predicted vs. observed activities can reveal systematic errors or outliers.
• Heatmaps or color-coded molecular structures ("heat maps") can highlight the regions of the molecule that contribute most to the predicted activity.
• Three-dimensional pharmacophore models can identify the key structural features and their spatial arrangements that are important for biological activity.

8. Common Challenges in QSAR Modeling

QSAR modeling, like any data-driven approach, faces several challenges that need to be addressed to ensure the reliability and robustness of the developed models. Some of the common challenges include:

1. Overfitting and Underfitting

• Overfitting: The model fits the training data too closely, resulting in poor generalization to new, unseen data. This can happen when the model is too complex (e.g., too many descriptors) relative to the size of the training dataset (7).
• Underfitting: The model is too simple to capture the underlying structure-activity relationship, leading to poor performance on both the training and test data.

Strategies to address overfitting and underfitting include:

• Careful feature selection to identify the most relevant descriptors
• Regularization techniques (e.g., L1/L2 regularization, dropout) to control model complexity
• Rigorous model validation using internal and external test sets

2. Descriptor Redundancy

• QSAR models often involve a large number of molecular descriptors, many of which may be correlated or redundant.
• Redundant descriptors can lead to overfitting, instability, and difficulty in interpreting the model.

Techniques to handle descriptor redundancy include:

• Feature selection methods to identify the most informative and non-redundant descriptors
• Principal component analysis (PCA) or other dimensionality reduction techniques to transform the descriptor space

3. Predictive Uncertainty

• QSAR models provide point estimates of the predicted activities but do not quantify the uncertainty associated with these predictions.
• Estimating the predictive uncertainty is crucial for making informed decisions, especially in drug discovery applications where the consequences of false predictions can be high.

Approaches to address predictive uncertainty include:

• Bayesian modeling techniques that provide probabilistic predictions and credible intervals.
• Ensemble methods that combine multiple models to estimate the prediction variance.
• Applicability domain analysis to determine the chemical space where the model can make reliable predictions.

9. Advanced QSAR Techniques

QSAR modeling has evolved beyond the traditional linear and non-linear regression approaches to include more sophisticated techniques that can capture complex structure-activity relationships. Some of the advanced QSAR methods include:

3D-QSAR

3D-QSAR methods incorporate the three-dimensional (3D) structural information of molecules to build predictive models. Two prominent 3D-QSAR techniques are:

1. Comparative Molecular Field Analysis (CoMFA)

• Represents the 3D molecular structure using steric and electrostatic fields.
• Aligns the molecules based on a common structural framework.
• Builds a regression model relating the 3D field descriptors to the biological activity.

2. Comparative Molecular Similarity Indices Analysis (CoMSIA)

• Similar to CoMFA, but uses additional physicochemical descriptors like hydrogen bonding, hydrophobicity, and partial charges.
• Provides more comprehensive information about the 3D structure-activity relationships.

3D-QSAR models can provide valuable insights into the structural features and interactions that govern biological activity, guiding the design of new, more potent compounds.

Machine Learning Approaches in QSAR

Advanced machine learning algorithms have been widely adopted in QSAR modeling due to their ability to capture complex non-linear relationships:

Random Forests (RF)

• An ensemble learning method that combines multiple decision trees.
• Robust to overfitting and can handle high-dimensional descriptor spaces.
• Provides feature importance measures to identify the key structural determinants.

Gradient Boosting Machines (GBM)

• An ensemble technique that iteratively builds weak prediction models and combines them to improve overall performance.
• Can handle both continuous and categorical endpoints.
• Offers flexible feature engineering and can automatically select the most relevant descriptors.

These machine-learning techniques have shown superior predictive performance compared to traditional linear and non-linear QSAR models, especially for large and diverse datasets.

Deep Learning in QSAR

The recent advancements in deep learning have also been applied to QSAR modeling:

• Neural Networks: Deep neural networks can automatically learn relevant features from the raw molecular representations (e.g., SMILES, graphs) without the need for manual descriptor calculation.
• Convolutional Neural Networks: Can capture local structural patterns in molecular representations, similar to how image recognition models work.
• Recurrent Neural Networks: Can model the sequential nature of molecular representations like SMILES strings.
• Graph Neural Networks: Can directly operate on the molecular graph structure, preserving the inherent connectivity information.

Deep learning models have demonstrated impressive predictive performance on various QSAR benchmarks and can provide insights into the structure-activity relationships through techniques like layer-wise relevance propagation.

Related reading: 11 reasons to master cheminformatics before machine learning in drug discovery

10. QSAR Software and Tools

1. Popular QSAR Software and Tools

QSAR modeling relies on a variety of software tools and platforms to facilitate the different steps of the workflow, from data preparation to model building and validation. Here is an overview of some of the popular QSAR software and tools:

QSAR Toolbox

• Developed by the OECD (Organisation for Economic Co-operation and Development)
• Free and open-source software for chemical hazard assessment and read across
• Provides functionalities for data retrieval, chemical profiling, analog identification, and QSAR model development
• Supports both regression and classification QSAR modeling techniques

KNIME

• An open-source data analytics, reporting, and integration platform
• Provides a visual programming interface to build flexible QSAR modeling workflows
• Integrates with various cheminformatics libraries and QSAR algorithms
• Allows easy integration of custom scripts and external tools

Dragon

• Commercial software developed by Talete srl
• Calculates a wide range of molecular descriptors (over 5,000)
• Supports both regression and classification QSAR modeling
• Includes feature selection and model validation tools

MOE (Molecular Operating Environment)

• Commercial software developed by Chemical Computing Group
• Provides a comprehensive suite of tools for molecular modeling, simulation, and QSAR analysis
• Supports 3D-QSAR methods like CoMFA and CoMSIA
• Offers a user-friendly graphical interface and scripting capabilities

2. Open Source vs Commercial QSAR Tools

• Open-source tools like QSAR Toolbox and KNIME offer free access and flexibility but may require more technical expertise to set up and use.
• Commercial tools like Dragon and MOE provide more comprehensive features, user support, and a polished interface, but require licensing fees.
• The choice between open-source and commercial tools depends on the specific needs of the project, available resources, and the level of expertise of the research team.

11. Conclusion

QSAR modeling is a powerful computational technique that enables the quantitative prediction of biological activities and properties of molecules based on their chemical structure. In this comprehensive overview, we have covered the key concepts, workflow, and applications of QSAR modeling.

Here is a summary of key points:

• QSAR models represent molecules as numerical vectors of molecular descriptors and aim to establish a quantitative relationship between these descriptors and the biological activity of interest.
• The QSAR modeling workflow involves data preparation, descriptor calculation, feature selection, model building, and rigorous validation using internal and external test sets.
• Various linear and non-linear modeling algorithms, such as MLR, PLS, SVM, and neural networks, are used in QSAR depending on the complexity of the structure-activity relationship and the available data.
• Interpreting QSAR models is crucial to understanding the key structural features driving biological activity and guiding the design of new, more potent compounds.
• QSAR modeling faces challenges such as overfitting, descriptor redundancy, and predictive uncertainty, which need to be addressed through careful model development and validation.
• Advanced QSAR techniques, such as 3D-QSAR, machine learning, and deep learning, have shown promising results in capturing complex structure-activity relationships.
• A wide range of open-source and commercial software tools are available to facilitate different steps of the QSAR workflow.

12. Future Outlook

The future of QSAR lies in its integration with other computational and experimental methods, leveraging big data and machine learning, and enabling personalized medicine.

Combining QSAR with molecular docking, systems biology, and real-world evidence can provide a more comprehensive understanding of structure-activity relationships.

Applying scalable QSAR algorithms to large, diverse datasets and incorporating uncertainty quantification in predictions will be crucial for realizing the full potential of QSAR in drug discovery and beyond.

Undoubtedly, QSAR modeling has become an indispensable tool in the arsenal of computational chemists and biologists, enabling data-driven decision-making in various domains, from drug discovery to chemical safety assessment.

As the field continues to evolve, QSAR will play an increasingly important role in accelerating the development of new, safer, and more effective chemicals and materials.

13. Recommended Readings

1. Muhammad, U., Uzairu, A., & Ebuka Arthur, D. (2018). Review on: quantitative structure activity relationship (QSAR) modeling. J Anal Pharm Res, 7(2), 240-242.
2. Meyers, M. A., Chen, P. Y., Lin, A. Y. M., & Seki, Y. (2008). Biological materials: Structure and mechanical properties. Progress in materials science, 53(1), 1-206.
3. Consonni, V., & Todeschini, R. (2010). Molecular descriptors. Recent advances in QSAR studies: methods and applications, 29-102.
4. Patel, H. M., Noolvi, M. N., Sharma, P., Jaiswal, V., Bansal, S., Lohan, S., ... & Bhardwaj, V. (2014). Quantitative structure–activity relationship (QSAR) studies as strategic approach in drug discovery. Medicinal chemistry research, 23, 4991-5007.
5. Consonni, V., & Todeschini, R. (2010). Molecular descriptors. Recent advances in QSAR studies: methods and applications, 29-102.
6. Dearden, J. C. (2017). The history and development of quantitative structure-activity relationships (QSARs). In Oncology: breakthroughs in research and practice (pp. 67-117). IGI Global.
7. Hawkins, D. M. (2004). The problem of overfitting. Journal of chemical information and computer sciences, 44(1), 1-12.
8. Boulaamane, Y., Molina Panadero, I., Hmadcha, A., Atalaya Rey, C., Baammi, S., El Allali, A., ... & Smani, Y. (2024). Antibiotic discovery with artificial intelligence for the treatment of Acinetobacter baumannii infections. Msystems, e00325-24.
9. Zhao, M., Wang, L., Zheng, L., Zhang, M., Qiu, C., Zhang, Y., ... & Niu, B. (2017). 2D‐QSAR and 3D‐QSAR Analyses for EGFR Inhibitors. BioMed research international, 2017(1), 4649191.
10. Gupta, S. P. (1987). QSAR studies on enzyme inhibitors. Chemical reviews, 87(5), 1183-1253.
11. Kim, J., & Kim, S. (2015). State of the art in the application of QSAR techniques for predicting mixture toxicity in environmental risk assessment. SAR and QSAR in Environmental Research, 26(1), 41-59.
12. Burello, E., & Worth, A. P. (2011). QSAR modeling of nanomaterials. Wiley Interdisciplinary Reviews: Nanomedicine and Nanobiotechnology, 3(3), 298-306.
